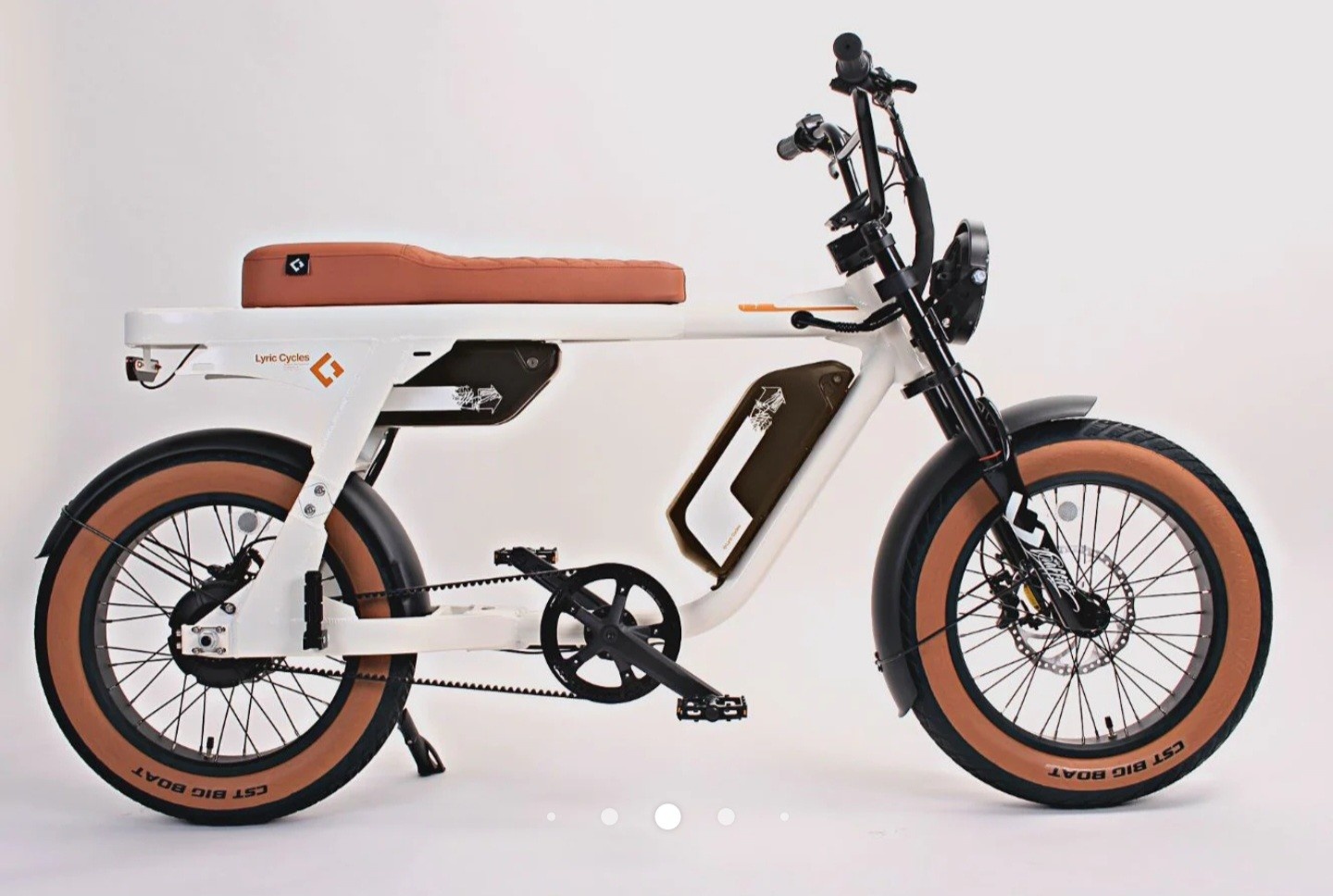

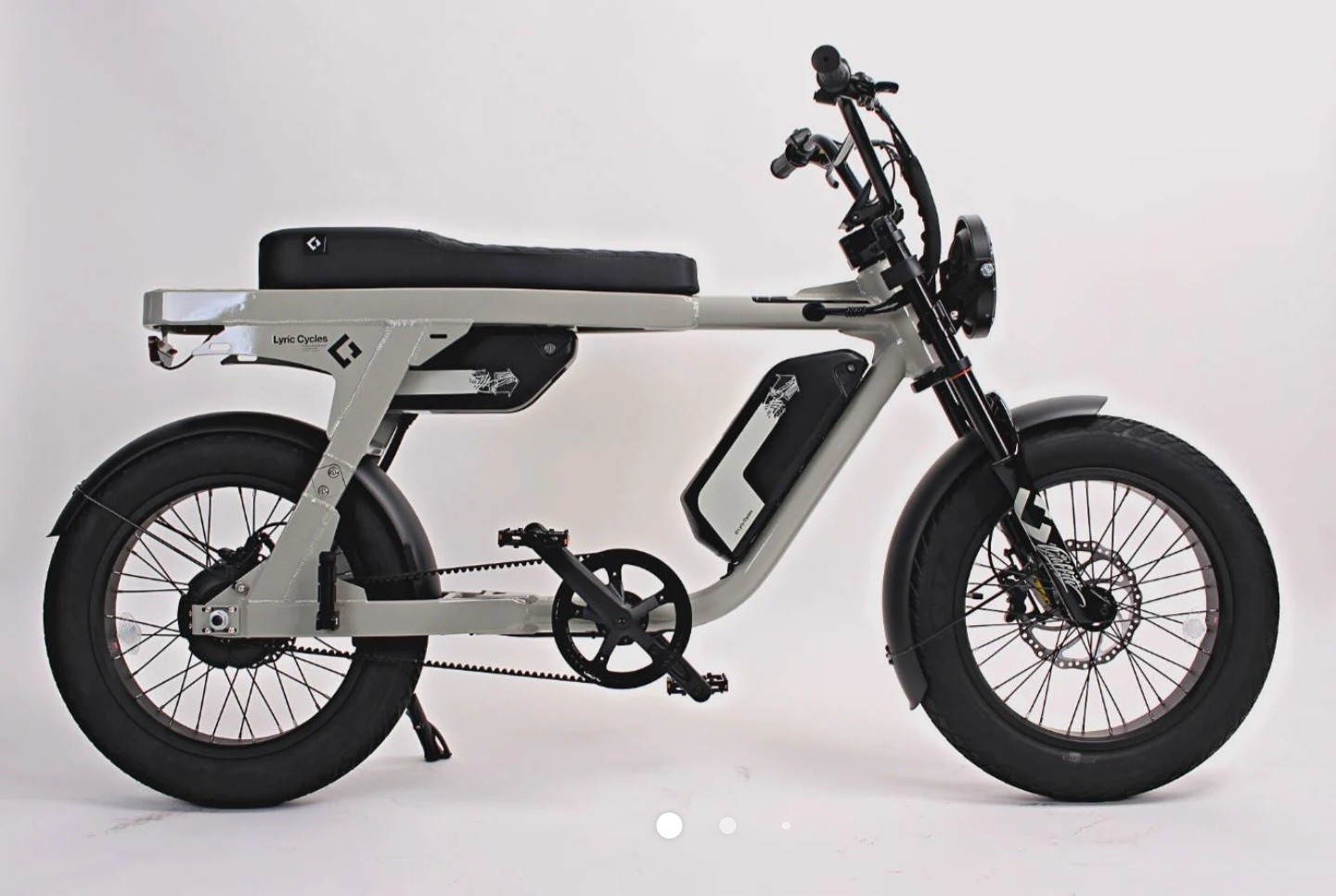

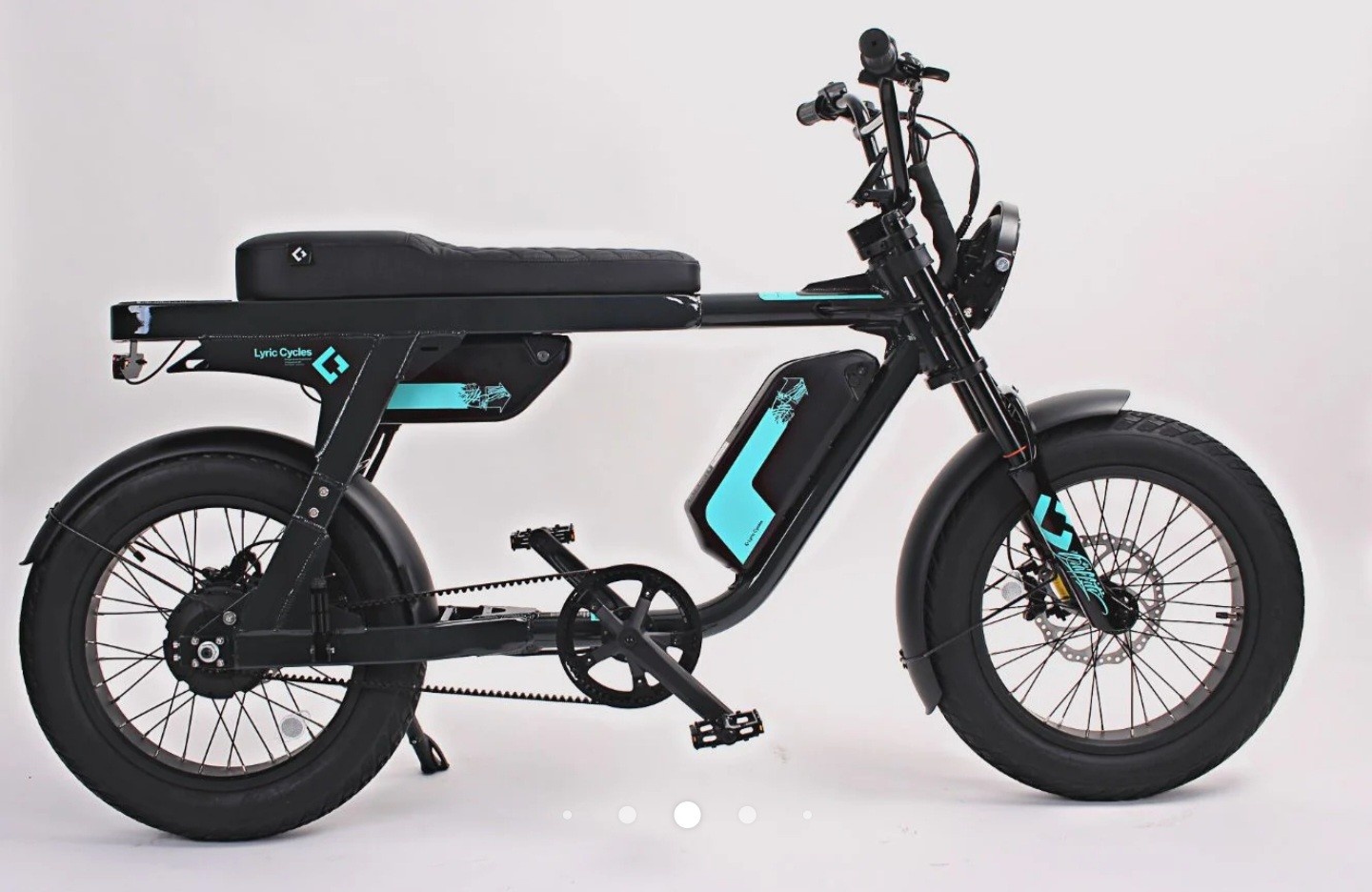

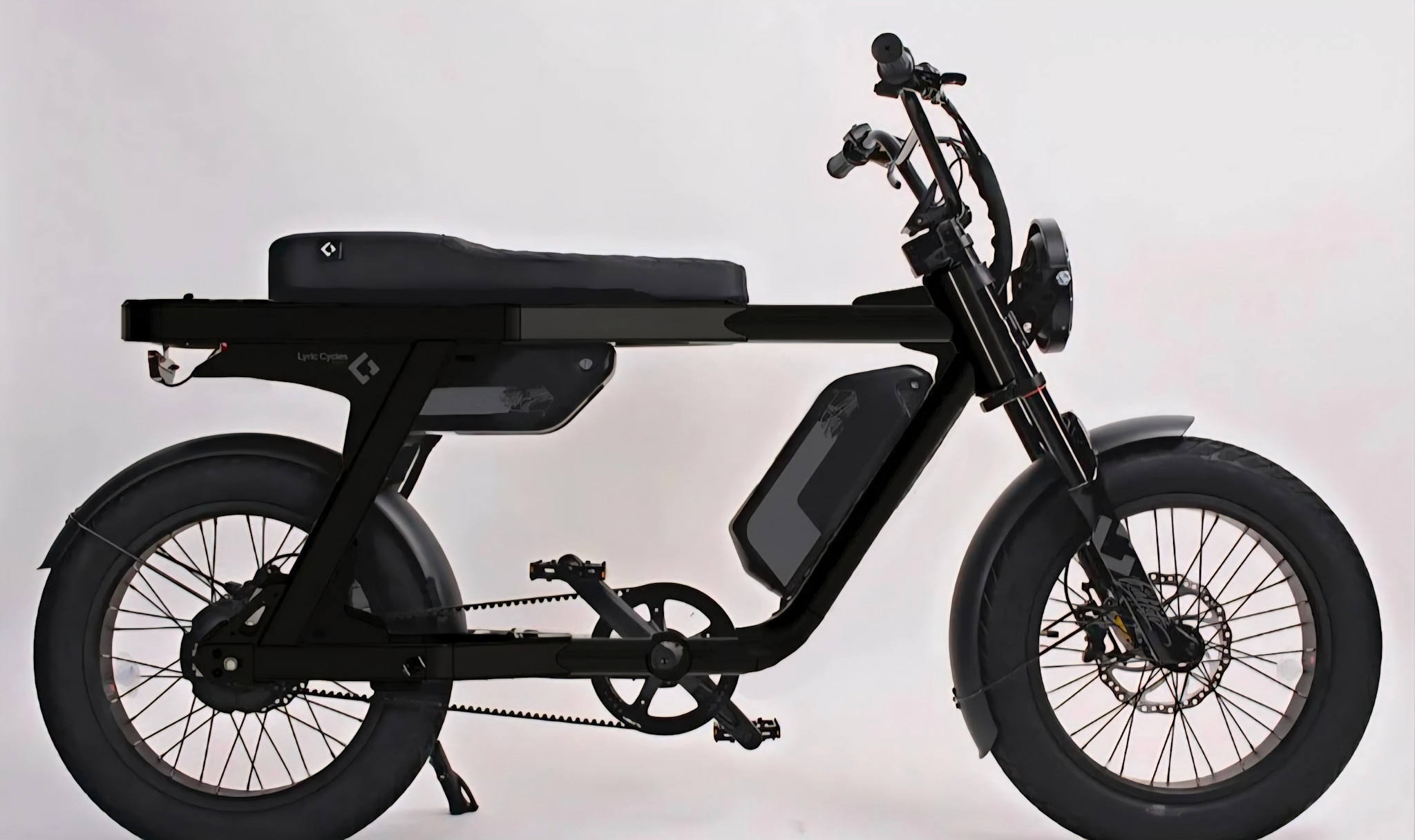

Lyric Graffiti 2023
The 2023 Lyric Graffiti is not just another electric bike. It was thoughtfully and meticulously designed to harmoniously blend high performance components with modern sustainable technology and eye-catching designs.
For the long leisurely cruises, the Graffiti has the range to go the distance. For the quick commutes, the Graffiti will get you there fast. Two’s company? The Graffiti will comfortably accommodate you both.
Plus, this eco and wallet-friendly electric bike is remarkably low maintenance.
Detailed Specifications & Geometry
Power, Range & Electronics
STOCK POWER (CLASS 2 USA)
750W (1000W peak)
Top Speed Regulated: 20mph
1000W (2300W peak)
Top Speed Unlimited: 33mph
*NOTE: Speed regulated to 20mph as a legal class 2 electric bicycle in the USA.
RANGE
Single Battery: 35-40+ miles per charge*
Dual Battery: 70-80+ miles per charge*
*Range formula used: 25-30 Wh per mile for a 175lb rider at 15-20 mph with pedal assist
BATTERY
52V, 20ah (1040 Wh) with 21700 Samsung 50E cells, rated for 1000 charge cycles
Optional Dual Battery 52V 2 x 20ah
CONTROLLER
52V, 33 amp controller
DISPLAY
APT 860c Display.
CHARGER
52V, 3 Amp with intelli-charger, 110v
PEDAL ASSIST
Configurable 5-9 level pedal assist with sealed 12 magnet cadence sensor
THROTTLE
Right side full twist throttle with throttle cancel button
LIGHTS
6000 lumen 7” DOT Motorcycle headlight
Integrated Tail and brake light
Turn signals not included
WIRING
IP54 rated, Internally run, water resistant connectors and wiring harness
FRAME
6061 Custom Aluminium with integrated rear rack
SADDLE
Custom 2-Passenger Scrambler Seat
BATTERY MOUNT
Single Battery: Under seat mount
Dual Battery: Downtube mount
SEAT POST
None: Seat Not Adjustable
BRAKES
Logan 4-Piston Disc Brakes
DRIVETRAIN
Veer Belt Drive System
64 Tooth Front Cog (comparable to 44 Tooth Chainring)
Single Speed Freewheel
SUSPENSION
Air / Spring front Suspension with 120mm travel and Adjustable Rebound
FRONT END
FRONT WHEEL DROPOUT: 135mm Hub Spacing
AXLE: 10mm Threaded Axle with Nuts
GRIPS: Mountain Bike Style Lock On Grips
HANDLEBAR: Alloy BMX Handlebar, 7.5" Rise
HEADSET: Threadless Internal Headset. Straight 1-1/8”
STEM
Double Crown Direct Mount, Alloy, Turn Stopper Pin
RACK
Built-In Rack with Optional Rack/Pannier extender
TIRES
20” x 4”, 15-20PSI, Dual Terrain CST Big Boat Tires with built-in puncture resistant layer
TIRE TUBE
20" X 4" with Schrader Valve
RIMS
Alloy, Double Wall, 20” X 100mm Outer Width, 36 Hole, Black
SPOKES
Stainless Steel, 13 Gauge Front, 12 Gauge Rear, Black with Silver Nipples
PEDALS
Black Steel Welgo Platform
KICKSTAND
Side-mounted, adjustable length
TOTAL WEIGHT
59 lbs (27 kg) without battery
BATTERY & MOTOR WEIGHT
BATTERY: 9.2lbs (4.2kg) each
MOTOR: 10.2lbs (4.6kg)
RIDER FIT
Fits Riders 5'4 - 6'3
FRAME SIZE
18.5" (47cm) Cafe Racer Frame Design
STANCE
1350mm Wheelbase
STANDOVER HEIGHT
31" Standover Height
