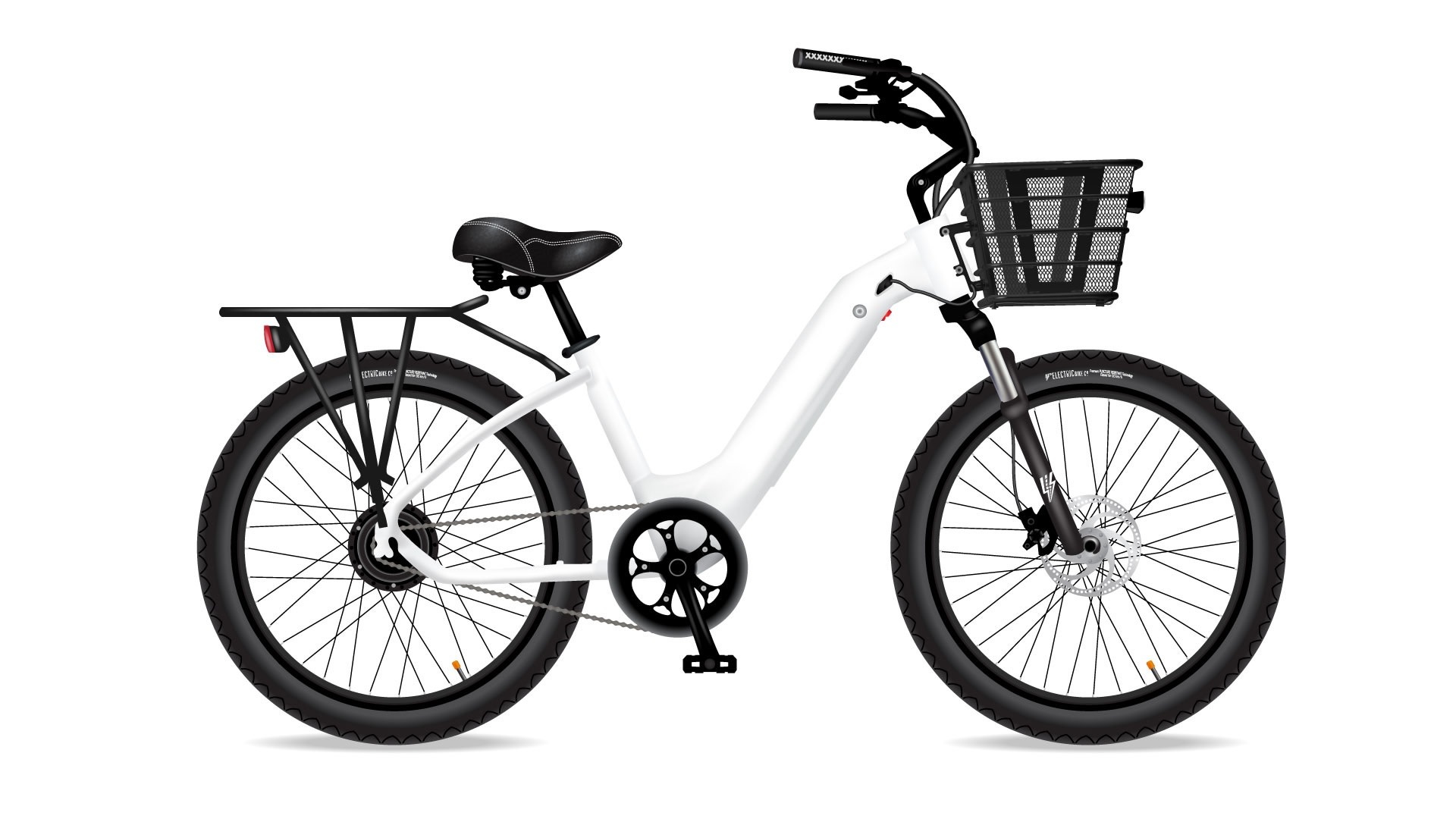

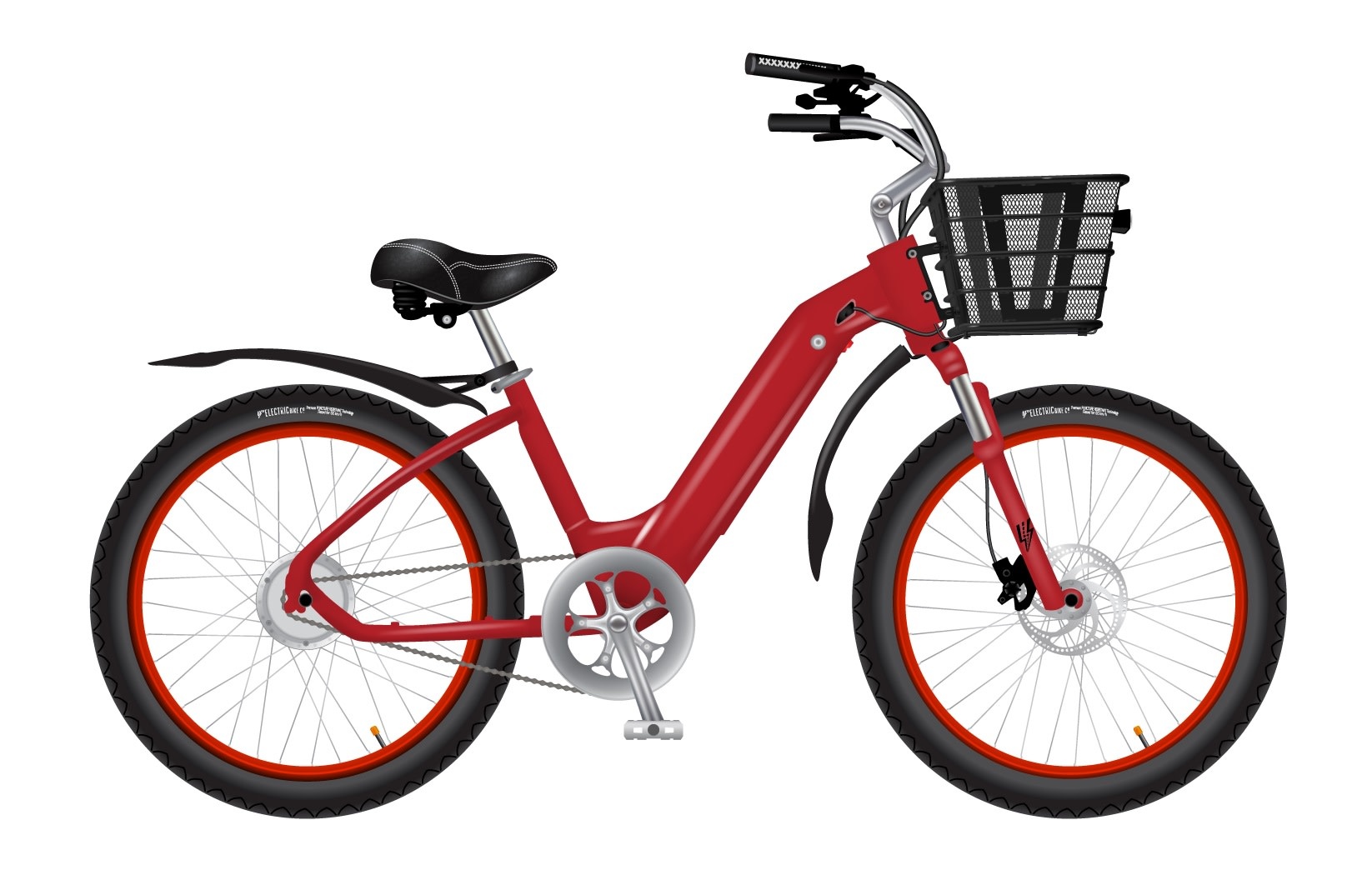

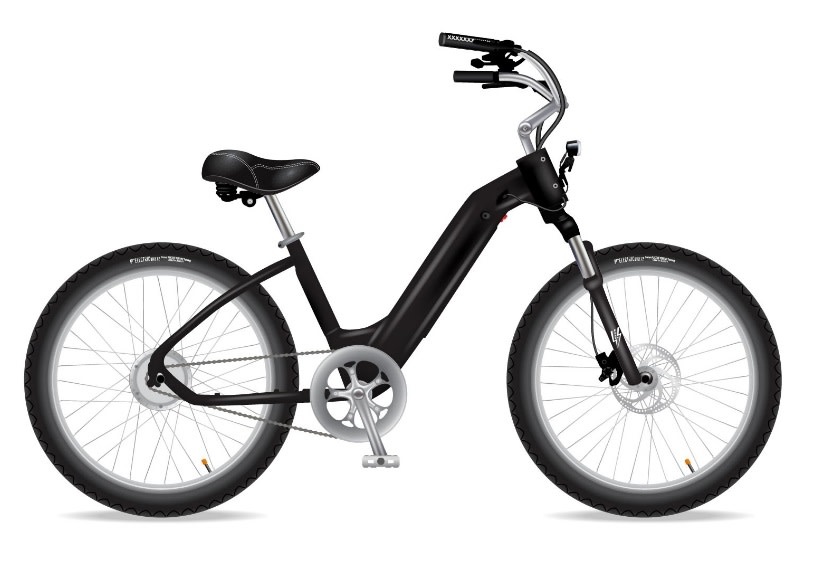

Model R

MODEL R (Rugged Enduro)

The Model R sets itself apart with its true hybrid performance. On and Off-road abilities makes this electric bike the most versatile on the market. It’s simply fun and radical to ride.

Bike Components

Battery
48V 11.6Ah (14Ah optional)
Lithium-Ion Samsung Cell (5 year warranty*)
* Please see warranty information
Battery charger
3.5 Amp super charger
with Smart charging technology, cooling fan,
aluminum cover & 3 prong charging port for safety
Brakes
Tektro E-530 hydraulic disc brakes
with safety electrical motor disconnect wiring.
Brake Levers
Aluminum alloy comfort grip levers with motor cutoff switch
Brake Pad Material
Organic compound
Brake Rotors
180 mm Stainless steel (front and rear)
Chain
Stainless Steel for longevity
Crank Set
56T, 170 mm forged alloy, dual-sided aluminum bashguard
Drive Train
Direct or optional 7 speed
Freewheel
18T cog for medium to hilly terrain
Fork
Suspension fork with hydraulic lockout and preload adjustment,
turn lockout on at anytime while riding,
80 mm travel, 135 mm hub width, 9 mm quick release
Grips
Handstitched Leather
Aluminium secure ends for Non slip
Handlebars
Aluminum Crusier
Headset
Semi-integrated, 1-1/8" straight steerer tube
LCD Screen
Multi level, compact, user friendly screen with UBS outlet
Lights
Front and Rear safety lights, controlled from LCD screen
Motor
1250W max output (10 year warranty)
Pedals
-
Rims
Double walled, Aluminum 2″ Jetset Rims
Seat
Custom 300 x 300 x 100mm thick, high density foam,
back bumpers for support and comfort
Seat Post
30.4mm x 300mm, up to 350lbs
Optional Satori suspension (170lbs) or Suntour suspension (350lbs)
Seat Post Clamp
Quick release
Spokes
13-gauge stainless steel, black or silver
Stem
120 mm, adjustable from 0º-60º
Tires
Custom Electric Bike Company Rhinoceros 26" x 3", premium puncture resistant technology, rated for 50km/h
Throttle
Thumb throttles for safety on every bike
